Re-tailing Agency

Overlay Proxy, Mathematical and Digital Model to Interact with Landscape Formation

2014.2-8, Final Thesis, M.ARCH Urban Design, Bartlett, UCL

With J.ZHANG, G.H.LUO, Y.X.CHEN

Tutors: Enriqueta, Eduardo, Zachary

An Emerging Landscape as a process of Oil Sand Extraction and Tailing Discharging

Re-tailing project takes Athabasca Oil Sand Extraction Area as an example. The territory faces severe landscape and social structure formation. In this dynamic process, a mixed residue "tailing" plays a significant role in shaping the post-industrial land form to the emergence of delta novelty.

Delta Landscape Emerge As a Result of Tailing Discharging in Tailing Ponds

Interface to better interact with formation

As the formation of tailing delta is hyper dynamic, designers need new instrument to interact with the process. Re-tailing Agency project emerges in this dynamic design requirement background.

Digital Interpretation of Delta Sediment Area

press to zoom

Replication of a physical Delta

press to zoom

Retaining Wall as Re-fabrication Method

press to zoom

Diffusion Process of Plant Seeds

press to zoom

Urbanization Process

press to zoom

Geomorphological Prototype

press to zoom
Show-Clean (2)
Show-Clean (2)
press to zoom
1_(4)
1_(4)
press to zoom
interface diagram
interface diagram
press to zoom
ipad interface with model_副本
ipad interface with model_副本
press to zoom
1_(13)
1_(13)
press to zoom
1_(18)
1_(18)
press to zoom
1_(2)
1_(2)
press to zoom

From physical to digita



Proxy model is depolyed to simulate the delta formation. Through this tangible mechanism, the behavior of delta and its tailing agents are immediately presented to the designer. However, the behaviors are ambiguous.



Data visualizationg and digital interpretation thus become indispensable as they can represent the collective behavior principle through simple and unified language and even in more delicate data.

Re-tailing Interface

Real time Digital Interface

Kinect plus Firefly

Real time Interpretation

Methodology



Proxy, digital and mathematical model are overlapped as a hybrid design interface to interact with landscape formation. Coding and data visualization are indispensable approaches as only through iteration of data, the most quality and complexity of dynamic system can be revealed to designers.

Scale that matters
Scale that matters
press to zoom
Code the sequence
Code the sequence
press to zoom
Hack Delta Behavior
Hack Delta Behavior
press to zoom
Robot Intervention
Robot Intervention
press to zoom
Data Flow and Interface Structure
Data Flow and Interface Structure
press to zoom
Fabrication Sequence
Fabrication Sequence
press to zoom
GIS and Ecotect Evaluation
GIS and Ecotect Evaluation
press to zoom

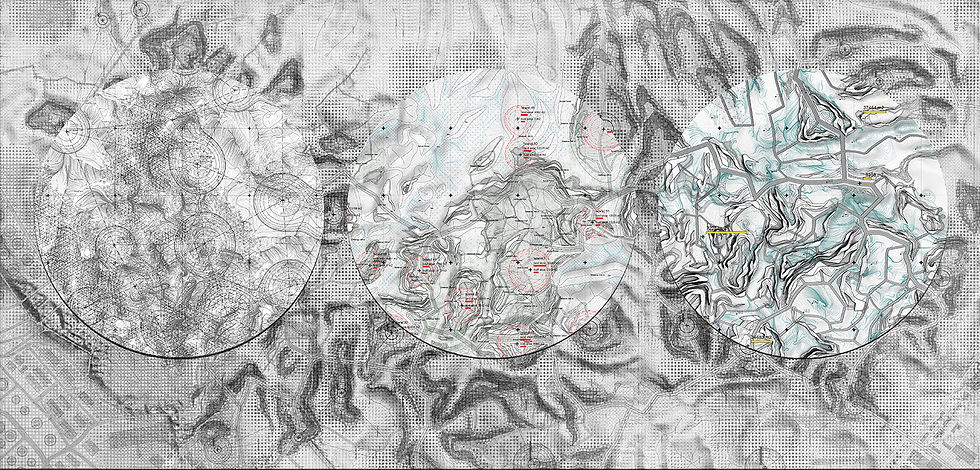

Masterplan
Masterplan
press to zoom
Slope Climbing
Slope Climbing
press to zoom
Sunlight Reshaping
Sunlight Reshaping
